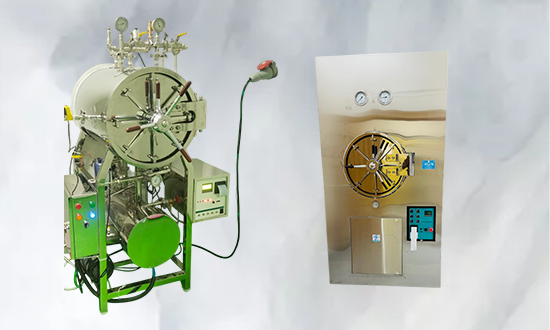

Cylindrical Horizontal Autoclave
Cylindrical Horizontal Autoclave
The Cylindrical Horizontal Autoclave is an essential sterilization equipment widely used in healthcare, laboratories, and pharmaceutical industries. Its cylindrical design ensures uniform heat distribution, making it ideal for sterilizing large loads of instruments, glassware, and other items. Designed to operate under high pressure and temperature, this autoclave effectively eliminates harmful microorganisms.
Known for its durability and reliability, the cylindrical horizontal autoclave is equipped with advanced safety features to ensure secure operation. It is suitable for sterilizing both solid and liquid items and can accommodate a variety of material sizes, thanks to its spacious chamber and robust construction.
Technical Specifications
- Material Used: SS304/SS316, Steel & Other Alloys
- Controls: Manual or Digital Controller & Tablet Controller
- Safety Features: Two safety valves, pressure switch, low water level device for heater protection, and pressure lock device for the door
- Pressure Settings: Works on 121°C / 134°C at 20/32 psi (1.5 kg/cm² to 2.2 kgf/cm²)
- Testing: Hydrostatically tested at twice the working pressure
- Vacuum System: For drying chamber with 4mm tackiness
- Steam Generator: 6/12/18 kW
- Doors: Made of SS316/304 quality, 12mm thickness
- Jacket: SS316/304, 6mm thickness
- Stand: SS304 / Powder Coated
- Steam Pressure Lock Hydraulic Device: For the door
- Available Styles: Single door and double door
- Power: 440V, 3-phase
- Temperature Controller: 121°C / 134°C
Available Sizes
Cylindrical Sizes:
- 16x24 Double Drum (12"x15")
- 20x36 Three Drum (12"x15")
- 20x48 Four Drum (12"x15")
Automation Features
- Different cycles available: 134°C Cycle, 121°C Cycle, Flash Cycle
- Bowie Dick Test and more
- Auto water filling system
- Semi-auto functions available
- Memory backup for recorded cycles
- Thermal printer with temperature, date, and time logging
- Lifetime free software updates
